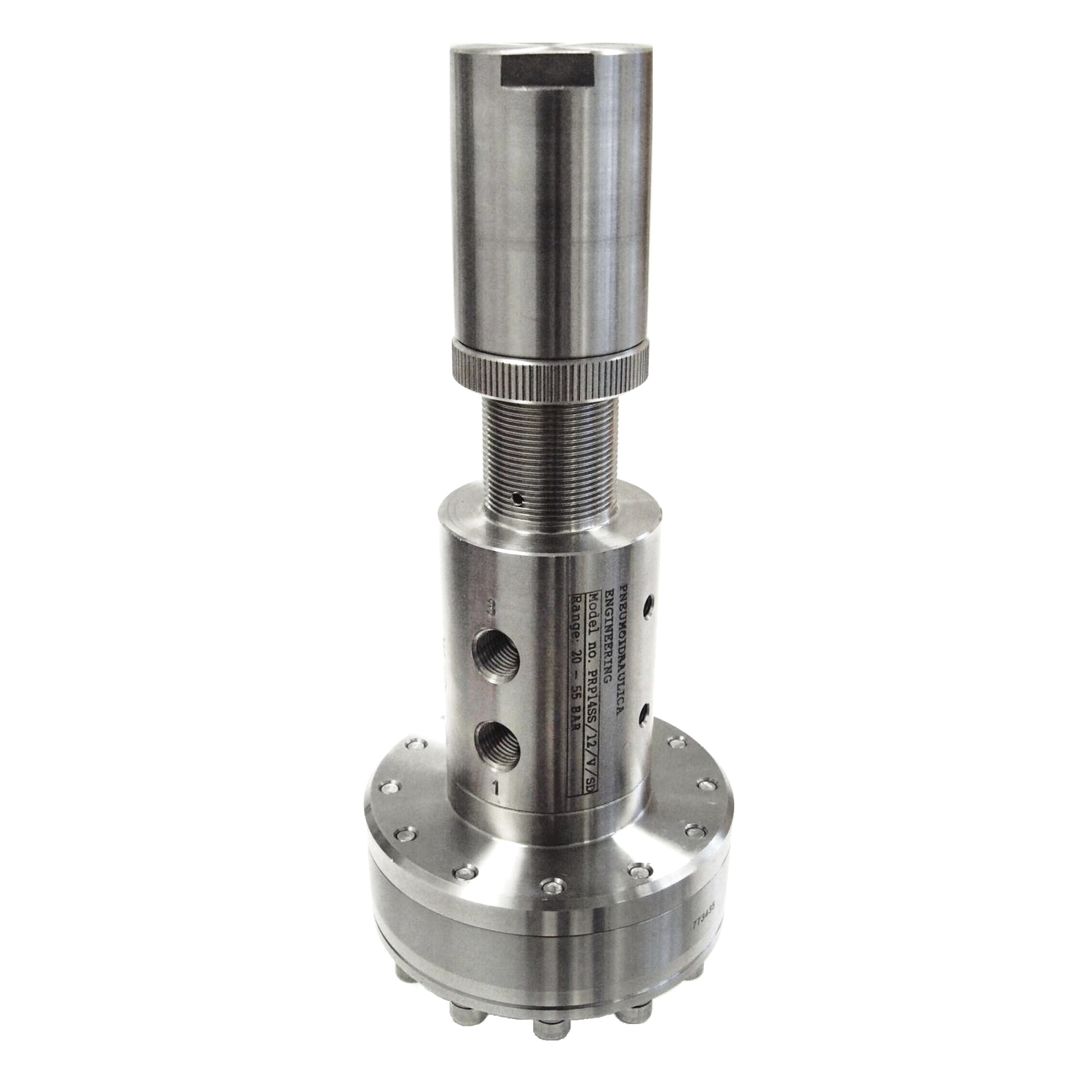

Pressure pilots (garret)
PNEUMOIDRAULICA ENGINEERING designs and realizes a complete range of pneumatic and hydraulic pilots (Garret) suitable for the pressure control in Oil & Gas PSD logics. The high quality and reliability of the product allowed us to meet numerous customer applications from all over the world.
Standard features:
- Body and Internal parts materials: AISI316L stainless steel
- Function: pneumatic / hydraulic pressure switch
- Setting range: from 0,3 bar to 550 bar
- Intervention: increase or decrease (reversible)
- Sensor max. pressure: 700 bar
- Valve max. pressione: 60 bar
- Control media: air/instruments gas – hydraulic mineral oil
- Process media: gas / liquid
- Valve type: 3 ways 2 positions (universal)
- Valve connection: ¼”NPT-F
- Process connection: ½”NPT-M
Special executions:
- “Tandem” figure (PSH/PSL)
- Execution for differential pressure
- Different calibration pressures
- Oxygen option
- Integrated liquid separator (for aggressive media)
- Application in presence of H2S (NACE MR01-75)
References:
- ENI (ENI E.&P. - SNAM – STOGIT – ADRIATICA IDROCARBURI – ENIMED)
- PIETRO FIORENTINI
- PRECISION FLUID CONTROLS
- FORES ENGINEERING
- DELTA CONTROLS MALESIA
- PETRONAS
- SITIE IMPIANTI INDUSTRIALI
- TOZZI SUD
- EXXON MOBIL
- PO VALLEY - NORTH SUN
- ITALFLUID GEOENERGY
