Instruments air packages

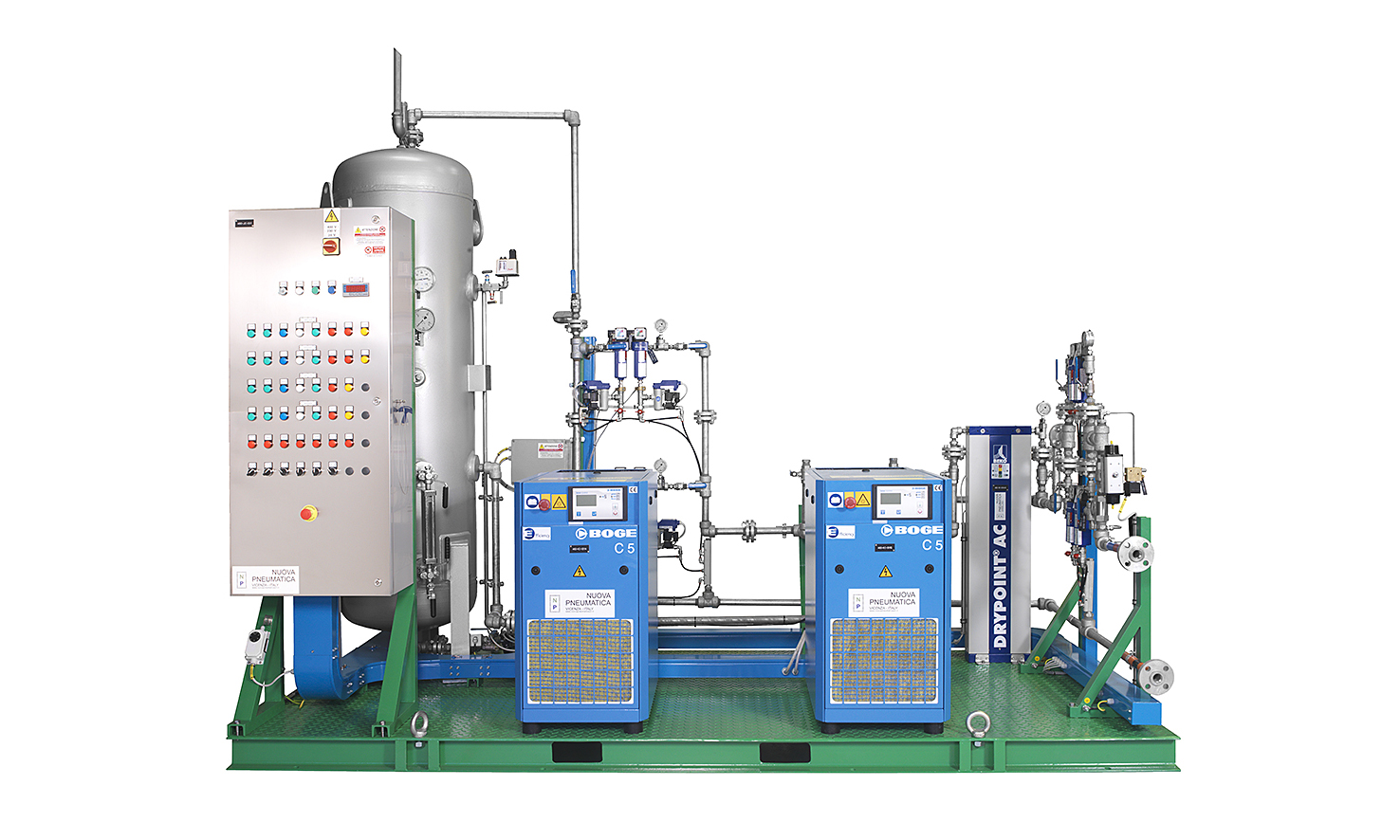

  • package air 1
  • package air 2

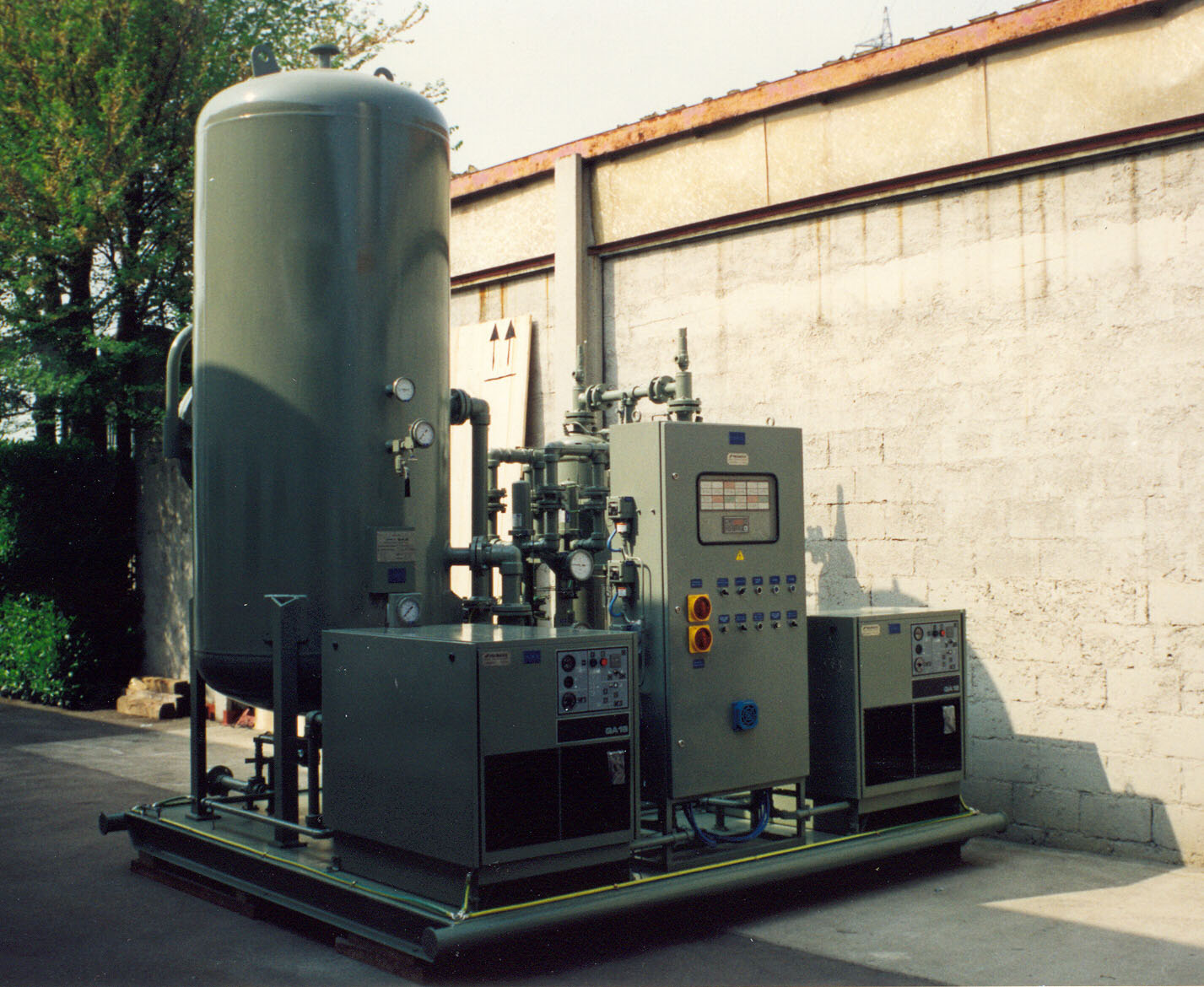

  • package air 3

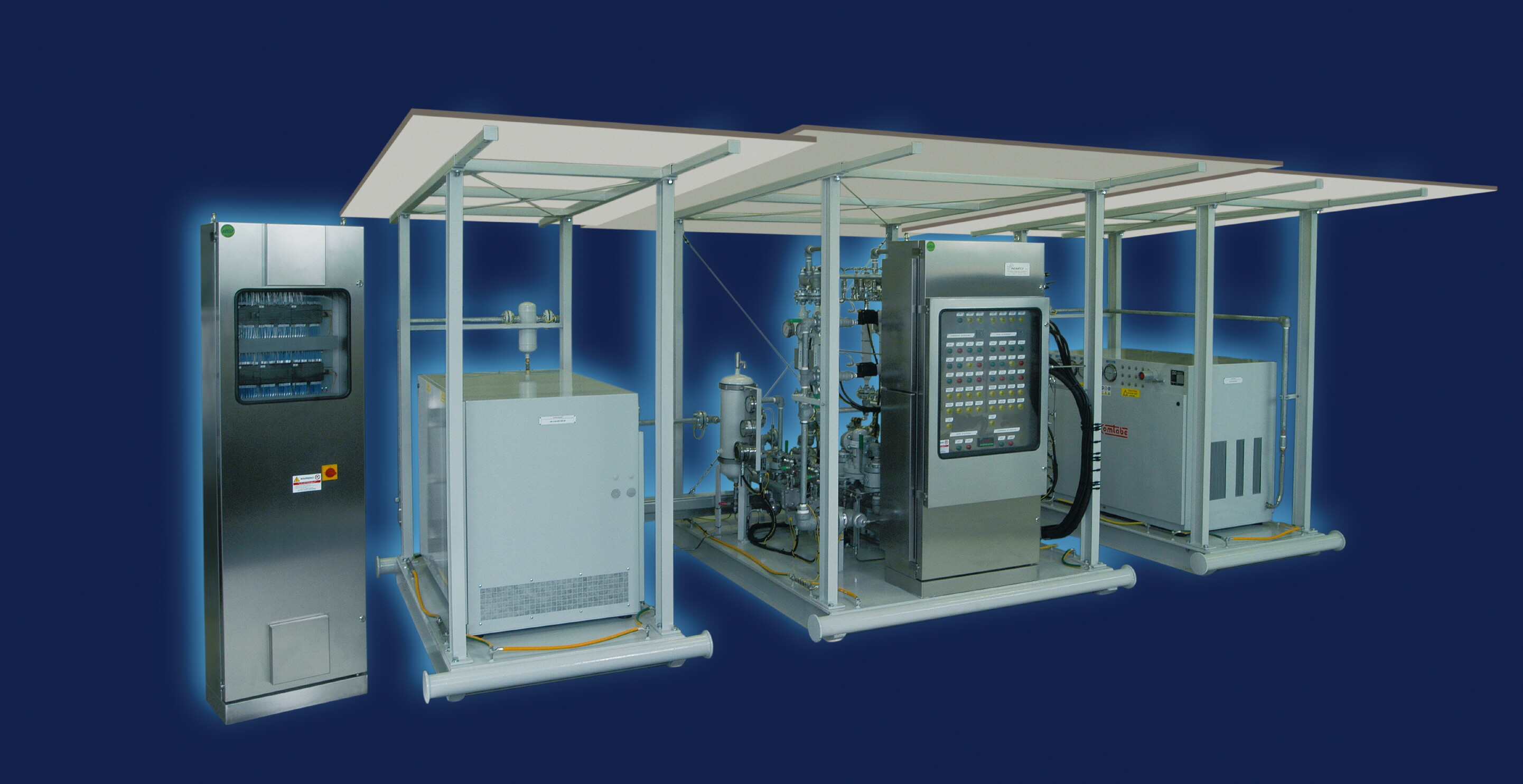

  • package air 4

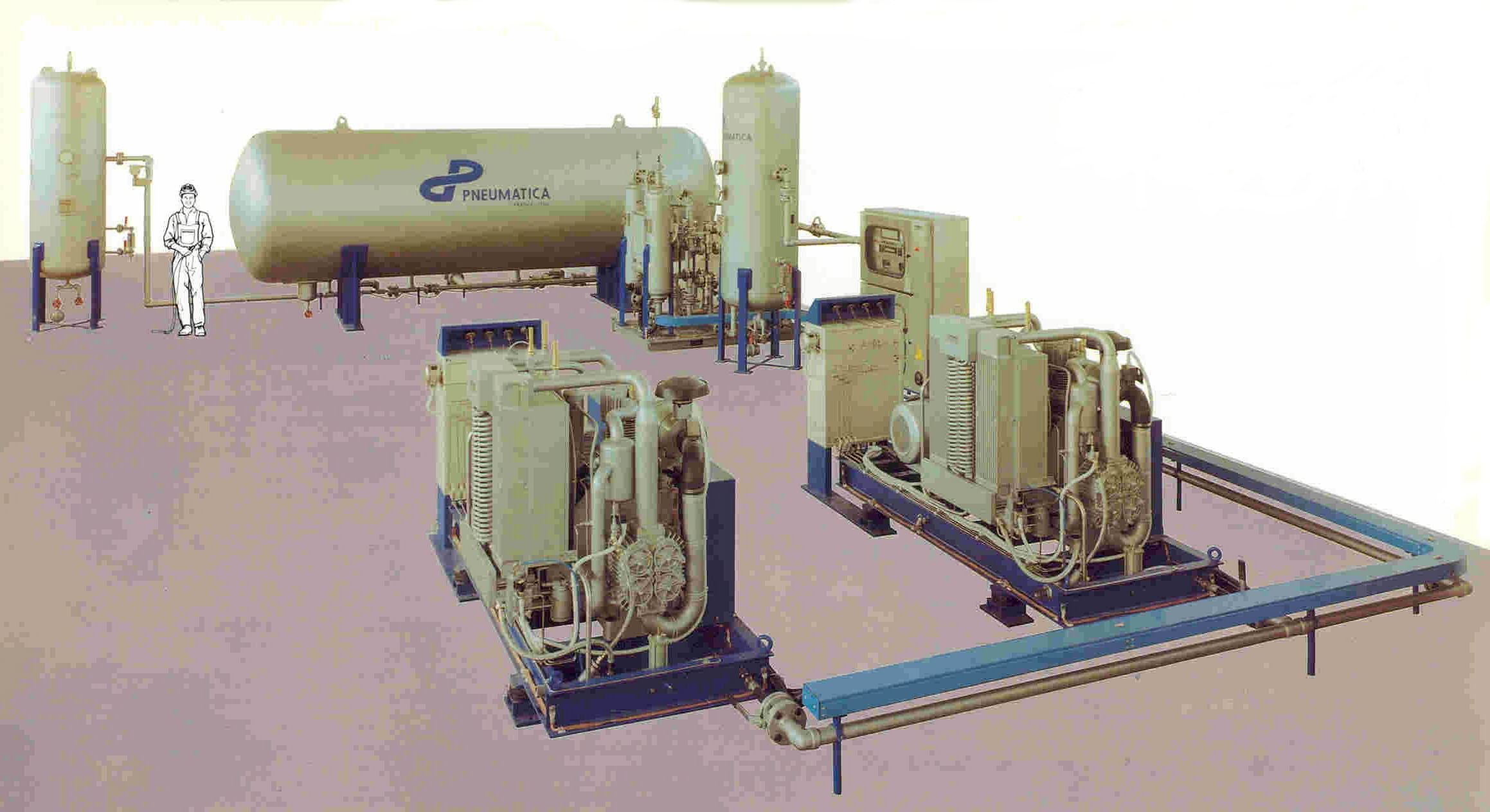

  • package air 5

PNEUMOIDRAULICA ENGINEERING, through the partner company NUOVA PNEUMATICA, designs and manufactures instruments air packages with technical features tailored for each application. The typical execution includes the installation of a unique “skid” including compressors, condensate separators, dryers, filters and electric control panel. The compressor is chose from the major manufacturers, depending on the technical and functional features required by the application. Those manufacturers are also able to provide for a direct technical assistance and spare parts worldwide. Numerous are the fields of application: Oil & Gas, chemical, pharmaceutical, industrial, etc., in potentially explosive areas ( ATEX ).

Standard features:

  • Screw or lubricated piston compressors
  • Electric motor operated
  • Air cooling
  • Adsorption dryers with molecular sieves without heat (heatless) / membrane
  • Working pressure up to 13 bar
  • Painted finish carbon steel
  • Dew point: up to -70°C
  • Relay logic control or programmable logic control (PLC)
  • Certification CE87/404 – 2014/68/UE (PED)

Special features:

  • Non-lubricated compressors
  • Motor speed control (Variable Frequency Drive)
  • Water cooling
  • Diesel or gas motor operated
  • AISI 316 stainless steel filters, dryers, tubing, tanks and accessories
  • Working pressure up to 330 bar
  • ASME VIII div.1 – “U” stamp
  • Certification 2014/34/UE (ATEX)
  • Instruments air production according to ISO 8573-1

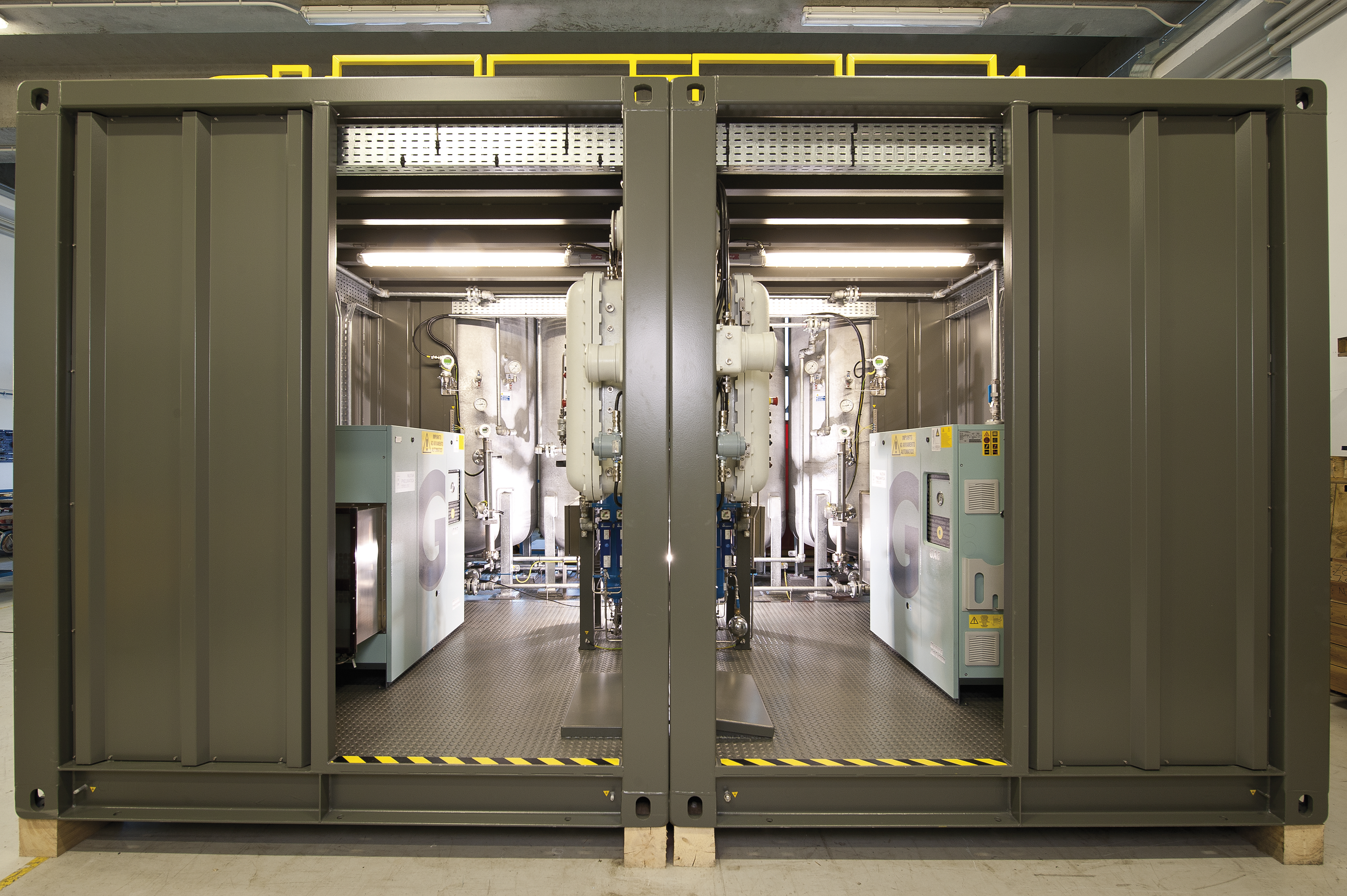

  • Arrangement in ventilated / conditioned container
  • Redundant versions (base / stand-by) with manual or automatic switch
  • Installation in severe climate conditions (very low/very high temperatures, desert zones, etc.)
  • Testing Officiated and Certification on customer request
  • Nameplates and documentation in different languages (Russian, Arabic, etc.)
